Red Laser Pointer ML-30P-635-1
Producer: SEMICON
Product code: ML-25P-650-1
Quantity [pcs.]: 0
Parametres: Wave lenght: 650 [nm], Avaliability: 7-14 days, Warranty: 24 months
Prices
Quantity [pcs.]
net
gross
Unit
1+
27,50 €
33,83 €
pcs.

- DESCRIPTION -

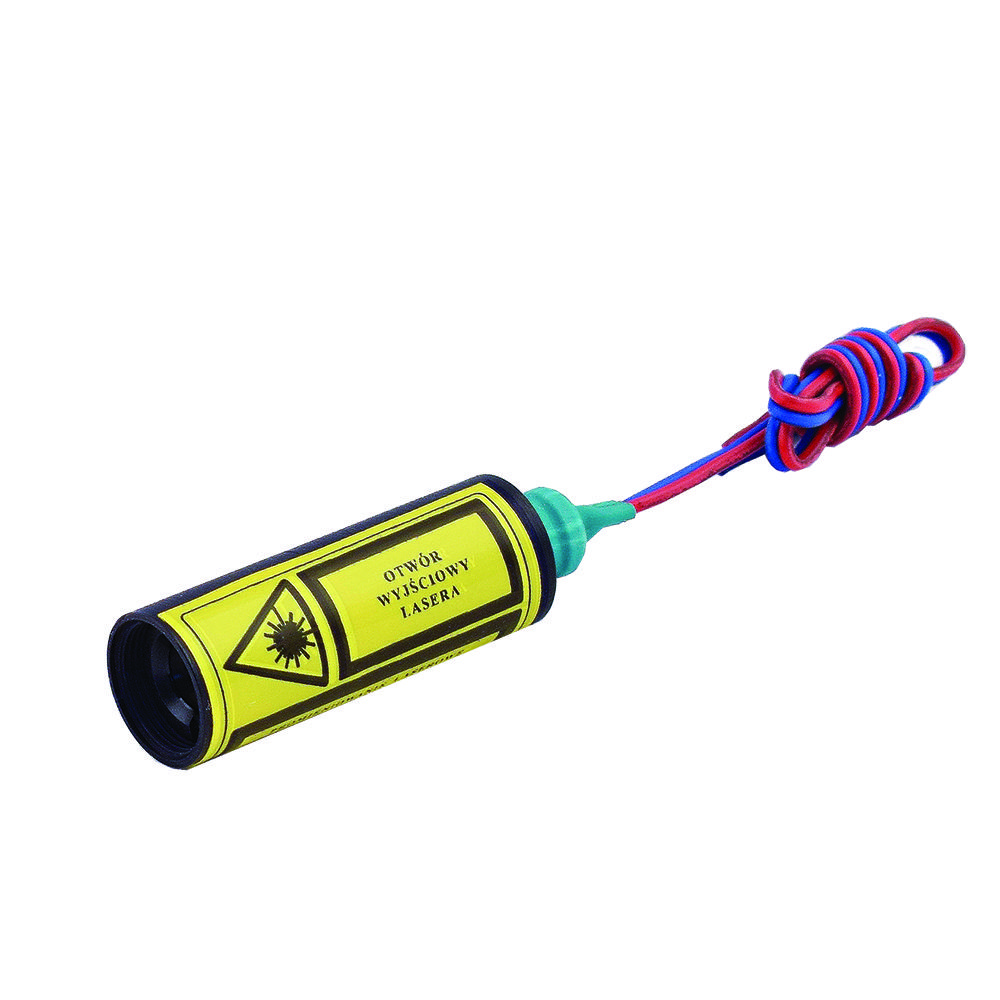

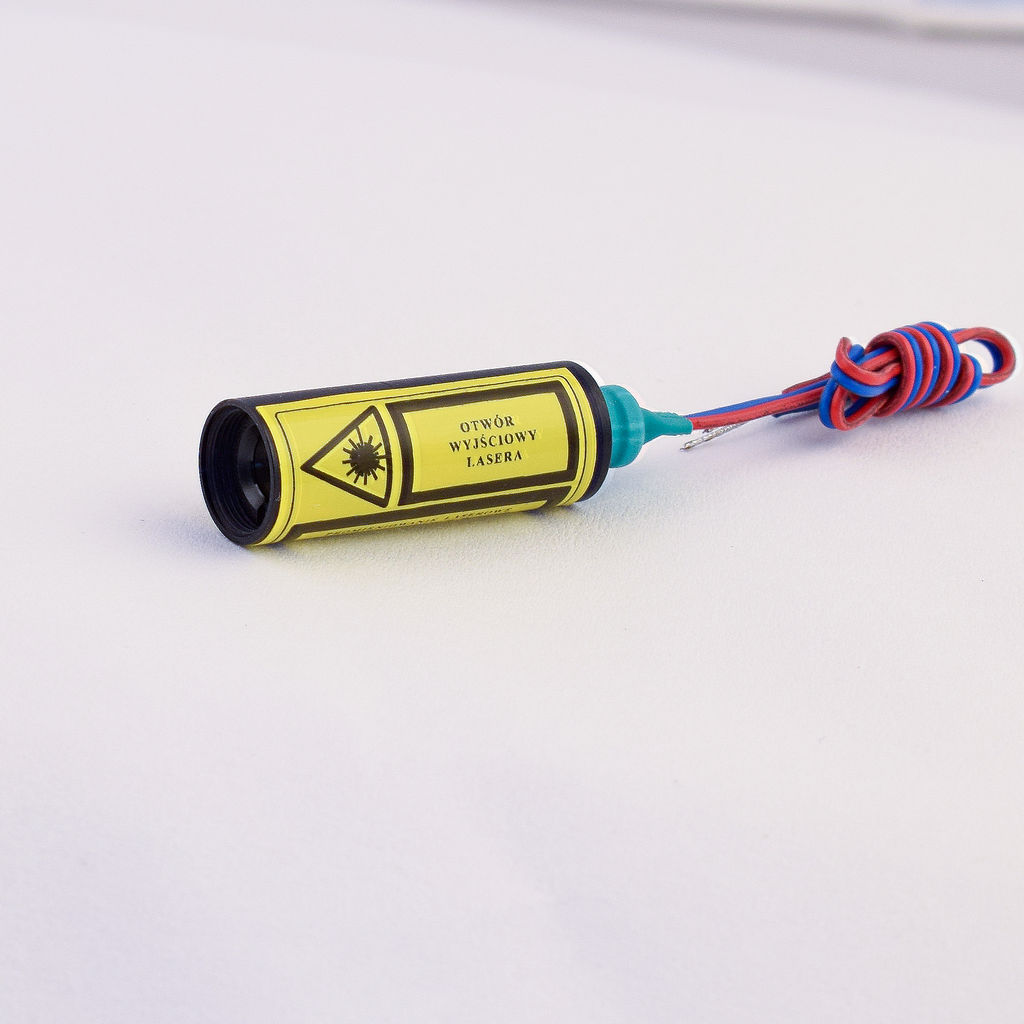

Miniature red laser pointer.

Technical data:

  • Laser Diode: Po=5mw
  • Operating Current: ~30 mA
  • Optics: aspherical acrylic lens F=8mm; NA=0,28
  • Beam Divergence: ~1,5 mrad
  • Beam Diameter: 1,5 mm - 4,5 mm
  • Possibility to focus at any distance from few centimeters to infinity
  • Aluminium housing (black)
  • Laser dimensions: Φ10,5mm x 27mm
  • Electrical connection markers: blue - negative, red - positive

- SPECIFICATION -
Wave lenght 650 [nm]
Avaliability 7-14 days
Warranty 24 months
Safety class 2
Laser beam color Red
Optical power 1 [mW]
Laser power supply 2,5-6 VDC
Operating Current <30 [mA]
Beam Divergence ~1,5 mRad
Beam diameter 1,5 mm-4,5 mm
